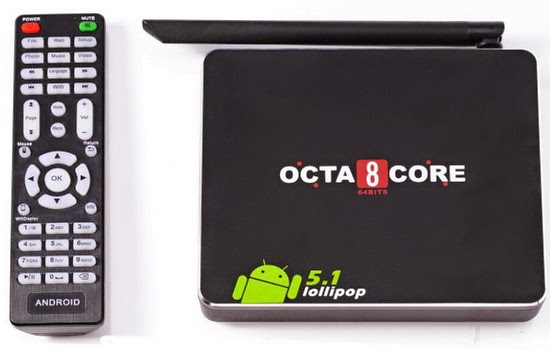

Photo Gallery: CSQ CSA90 Android Lollipop 5.1 TV Box

CSQ CSA90 Hardware Specifications
Operation System: Android 5.1LOLLIPOP,Octa core&64-bit CPU
Language: Chinese,English...Multi-Language support
Chipset: RK3368  Cortex-A53 Octa core&64-bit CPU
GPU: "High performance GPU,support OpenGL ES3.1,OpenCL 1.2 and DirectX 9.3    4K*2K H.264/H.265 real-time Video playback
HDMI2.0,4K*2K@60fps display "
SDRAM:  2GB  or 1GB DDR3
Nand Flash: 16GB Nand Flash or  8GB
Storage Extension: Support MicroSD(TF) ,Up to 32GB
Network&WIFI: AP6335: WiFi 11ac 2.4G,5G/BT4.0/FM,WiFi 1T1R 433Mbps       Support LAN 100M/1000M Base-T   or             or Realtek 8723 2.4G WiFi, Support LAN 100M Base
Bluetooth: BT4.0
Power Supply: DC 5V/2A

Interface
HDMI Out: 1xHDMI(A type Female),HDMI2.0,4K*2K@60fps display
USB Port: 2XUSB Host
Card Readere: 1X Micro SD card (TF card) reader
AV Out: CVBS,R/L
Network: 1xRJ45 LAN Port
Power Supply: 1xDC Jack
Antenna: External WiFi antenna

Media Parameter
Audio Container: Support MP1 MP2, MP3, WMA, WAV, OGG, OGA, APE, FLAC, AAC, M4A, 3GPP…etc
Audio formats.Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display            Audio Out: HDMI Data Output and audio output directly.
Video Decoder: Full video format decoding support. Support H.265 hardware decoding. Support format MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC 4Kx2K 60FPS
Video Encoder: H.264,H.265,VP8,MVC(4K)
Resolution: Support 4Kx2K & Full HD 4K*2K@60 fps video output
H.264 ,H.265 Data Rate: Up to 60Mbps
Image browser: Support JPG,JPEG,BMP,GIF,PNG,JFIF…etc photo format.Maximum resolution up to 8192x8192
Text-Reading: Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(Depends on APK install)
Software Extension: Support Google Play & APK install
Protocol: Support DLNA,Miracast Protocol,Support DRM requirement.
Remote Control: Support Smart phone remote control,2.4GHZ wireless air mouse/Remote controller
IM Software: Support Skype/QQ/MSN/GTALK (Depends on APK install)
Offic Software: WORD/EXCEL/PDF(Depends on APK install)

Package
Dimension: 16.5*16.5*2.8CM
Net Weight: 0.65KG
Gift Box Size: 21.4*17.3*9.4CM


What is in the box
1 x Manual,
1 x Adapter(DC 5V/2A),
1 x HDMI Cable,
1 x IR Remote Controller.
